Case Study: Classic Car Suspension 3D Scanning
Project Overview

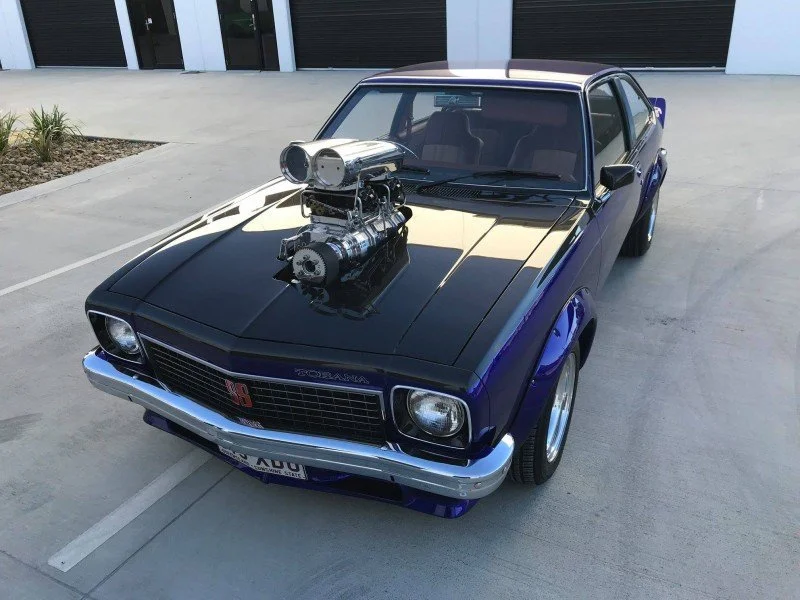

3D Hub was engaged to capture precise, certification-grade geometry of the suspension system from a highly customised Holden Torana LX SS. The vehicle featured mirror chrome components and complex custom fabrication, which made conventional measurement techniques slow, intrusive, and potentially inaccurate.
The objective was to create a complete, high fidelity digital model of the suspension system that could support certification through the Low Volume Vehicle Technical Association (LVVTA). The solution needed to capture accurate data without damaging the vehicle’s premium finishes or slowing the certification process.
This project demonstrates how 3D scanning in New Zealand can be used to accurately digitise complex automotive components for engineering analysis, reverse engineering, and vehicle certification.
The Challenge
Custom automotive builds often present measurement challenges that traditional tools struggle to address. In this case the key issues included:
Highly reflective chrome surfaces that typically disrupt optical scanning systems and often require heavy surface preparation.
Complex suspension geometry that needed to be captured in both free and compressed states to ensure accurate certification measurements.
Tight timelines to support the vehicle certification process.
A requirement for non-invasive measurement methods that would protect mirror finished components and custom fabrication.
Our Approach
We used advanced optical CMM 3D scanning technology to capture the suspension system with high accuracy in a workshop environment.
The portable scanning system allowed rapid setup and calibration while eliminating the need for adhesive targets on the vehicle. This significantly reduced preparation time and ensured the vehicle’s finish remained untouched.
To capture the full geometry of the system, the suspension was scanned in both free and compressed states. This ensured all mounting points, linkages, and structural relationships were accurately recorded.
Despite the mirror chrome finish, the scanning system produced clean, high-resolution data across all components without the need for scanning sprays, coatings, or disassembly.
Deliverables
The project delivered a complete digital dataset ready for engineering analysis and certification
documentation including:

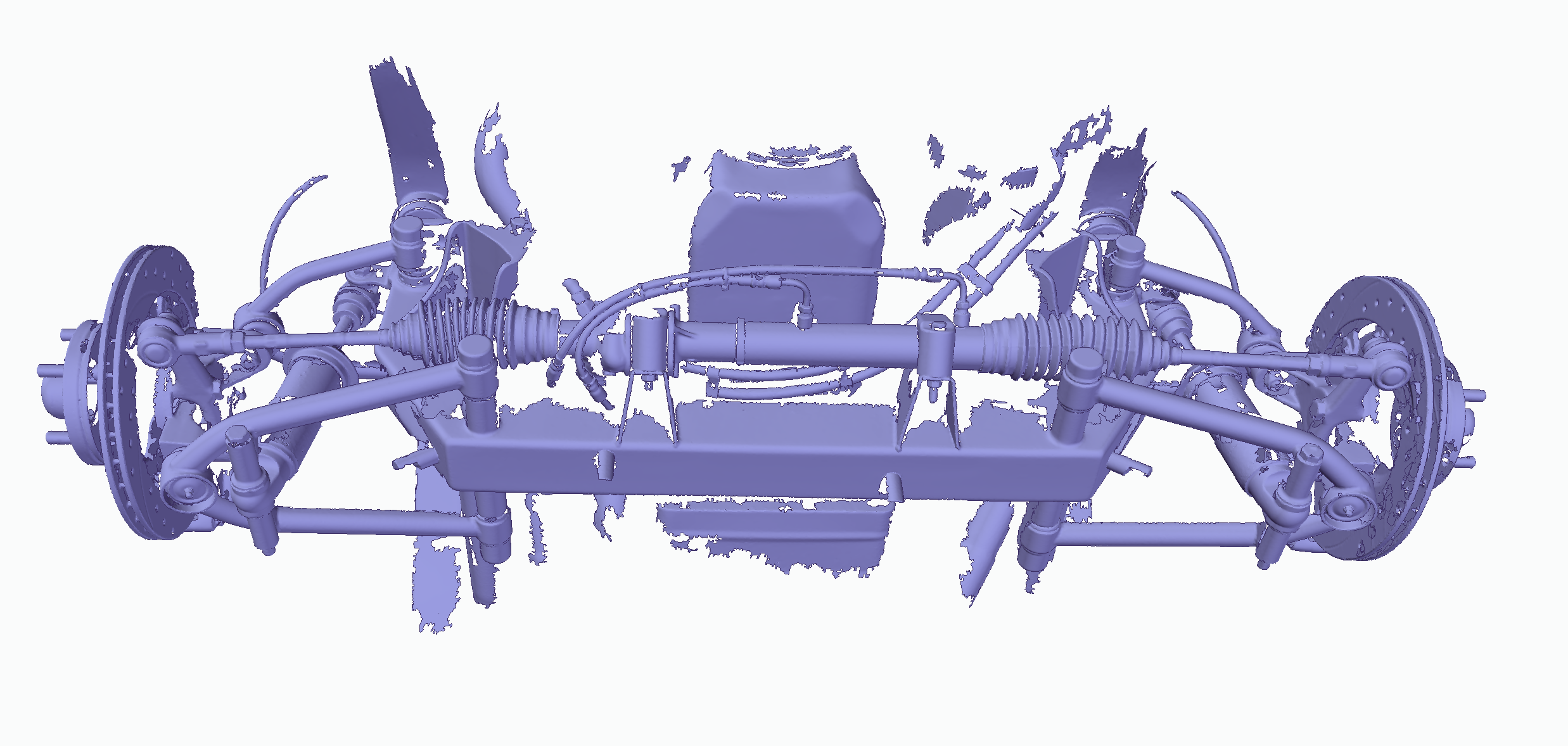

High accuracy 3D scan dataset of the full suspension assembly

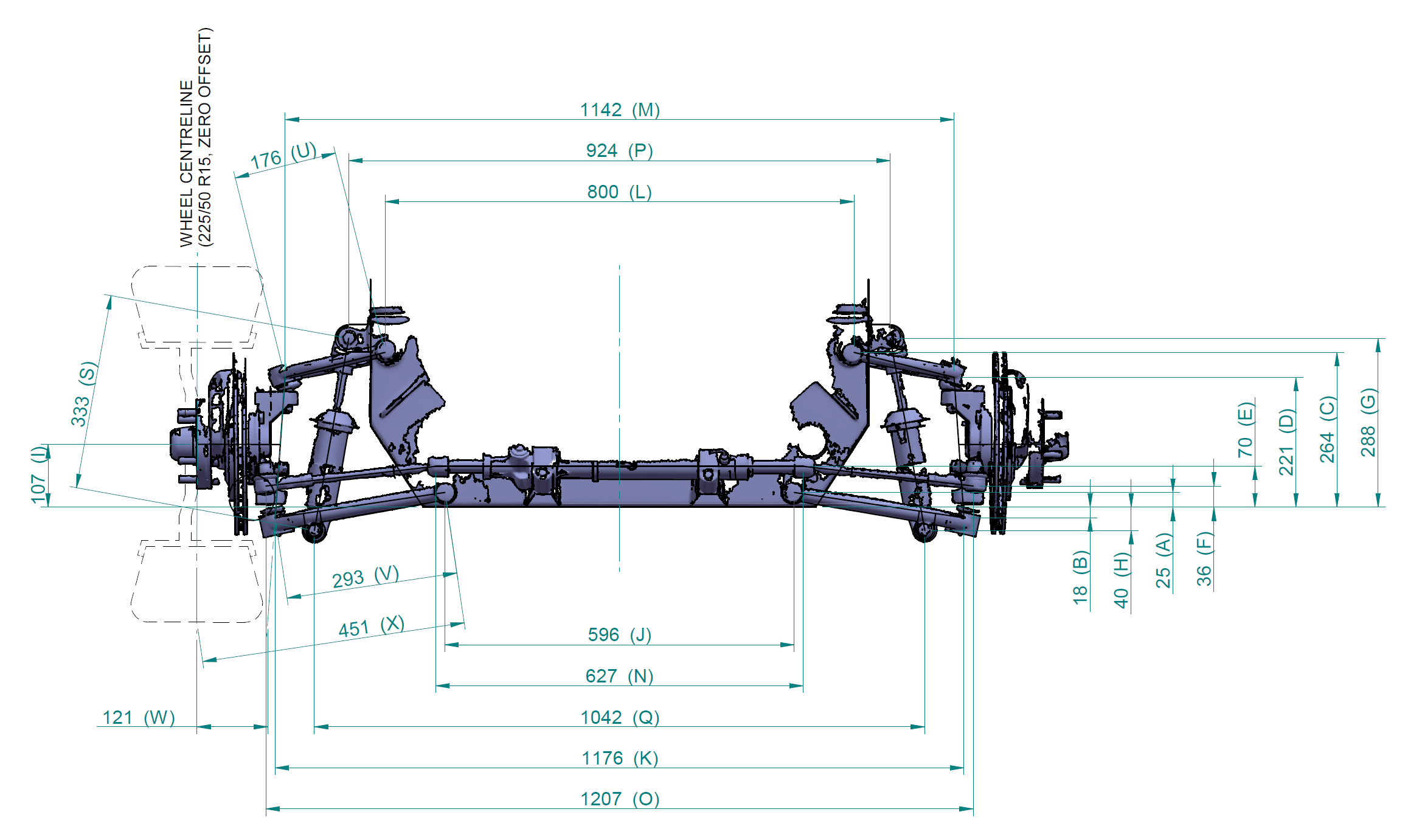

Dimensional inspection and measurement reporting for all suspension pickup points
Certification ready documentation prepared for LVVTA submission
Value Delivered
Confidence for vehicle certification
The accurate and traceable geometry enabled the customer to confidently progress through the LVVTA certification process.
No surface preparation required
Mirror chrome components were scanned without sprays, targets, or disassembly, protecting finishes and reducing preparation time.
Complete geometric capture
Scanning the suspension in both free and compressed states ensured that all critical geometry was captured and verified.
Fast project turnaround
Rapid setup and efficient scanning minimised workshop disruption and helped keep the vehicle build schedule on track.
Expertise in complex automotive scanning
The project demonstrates 3D Hub’s ability to deliver high precision 3D scanning services in New Zealand for customised automotive components with challenging optical surfaces.
Outcome
The customer received a complete 3D scan dataset and dimensional inspection report suitable for LVVTA certification submission. The data supported the successful progression of the vehicle certification process while eliminating the need for invasive manual measurements. This project highlights how advanced 3D scanning and reverse engineering services can accelerate certification, improve measurement accuracy, and reduce risk for custom automotive builds.
